Ersatzteile Waschmaschine Electrolux EWF 1284BW, 20160215
Produkte

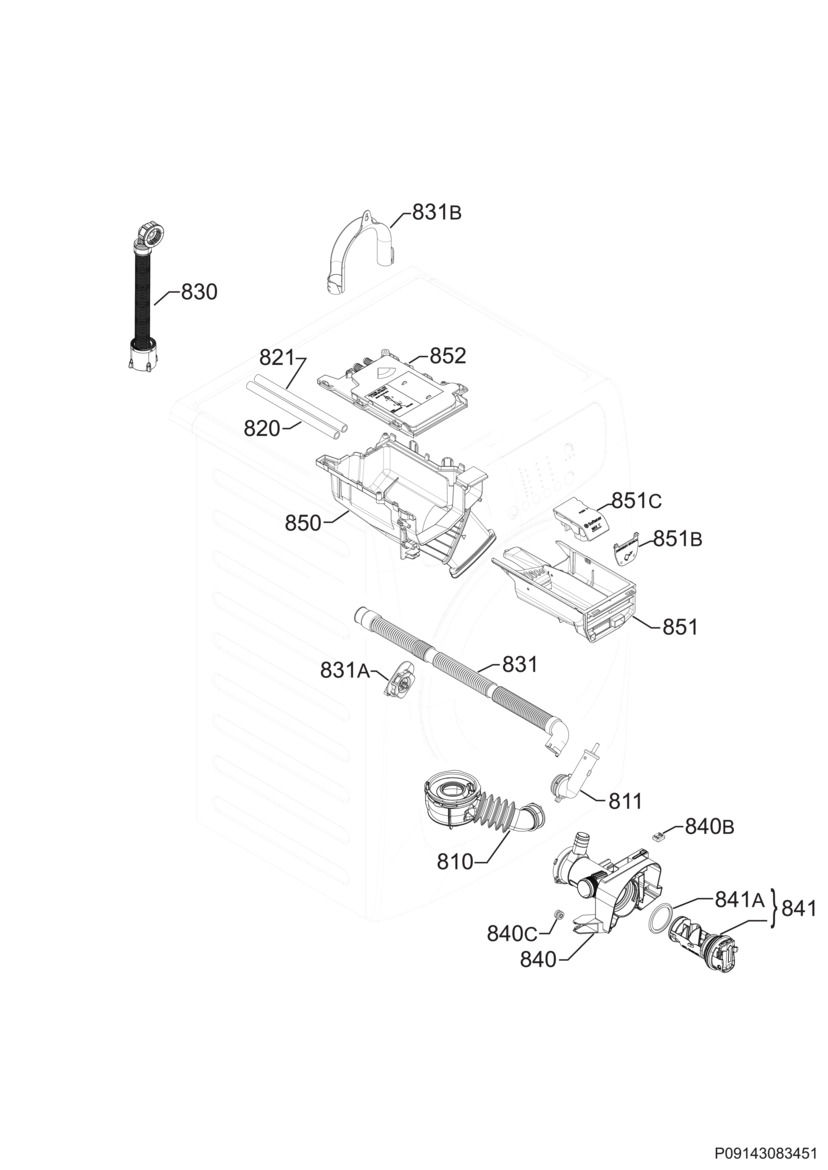

Air chamber,assembly,pilot2 - 140001022015 - p.811
Air chamber,assembly,pilot2 - 140001022015 - p.811, ...
Antriebsriemen für waschmaschinen - 1323531200 - p.602
Antriebsriemen für waschmaschinen - 1323531200 - p.602, ...

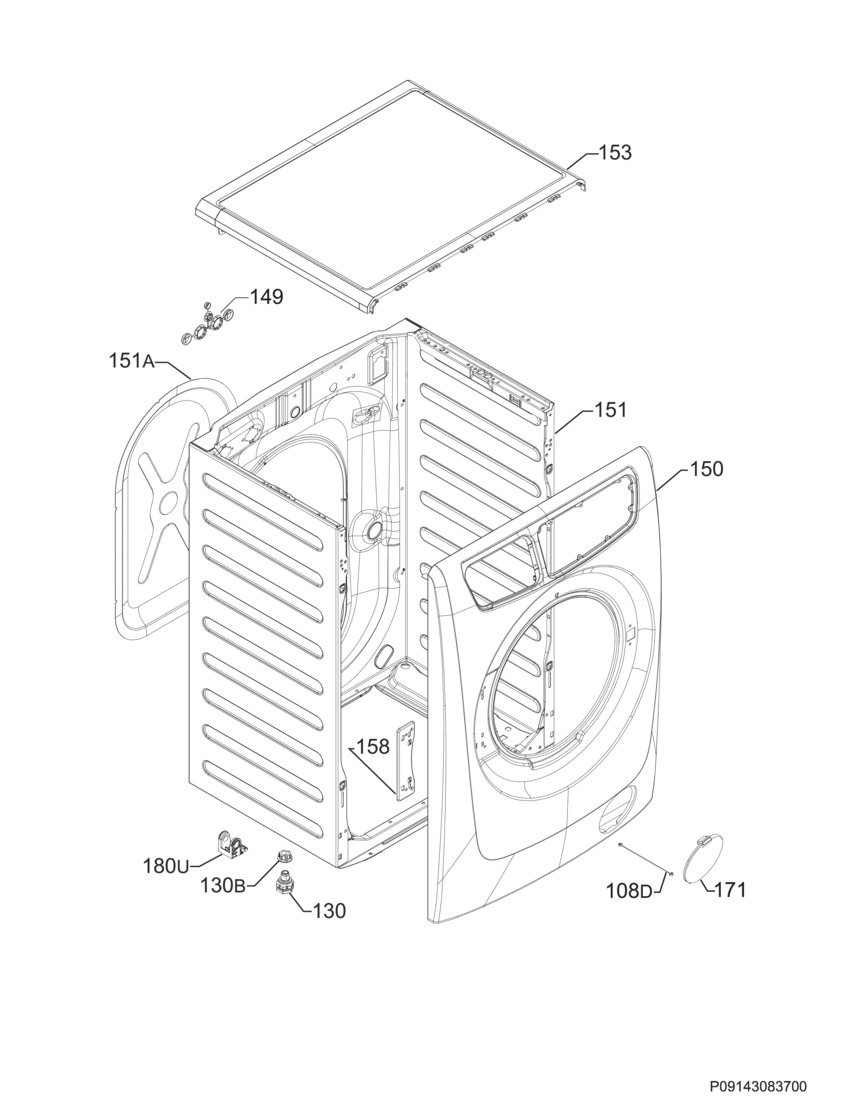

Back panel - 1926303015 - p.151A
Back panel - 1926303015 - p.151A, Ersatzteile Waschmaschine ...

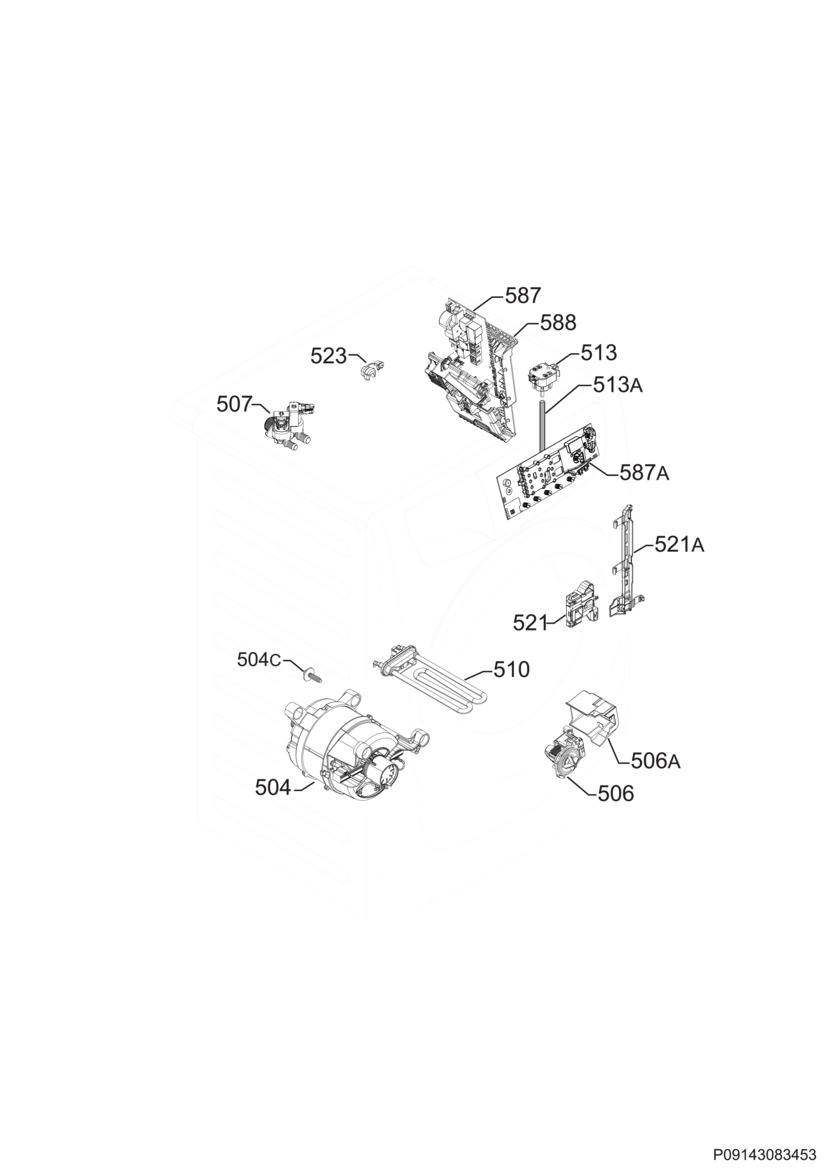

Box,main electronic board,ewx1 - 8078810028 - p.588
Box,main electronic board,ewx1 - 8078810028 - p.588, ...
Bracket,shock absorber - 8083450018 - p.180U
Bracket,shock absorber - 8083450018 - p.180U, Ersatzteile ...

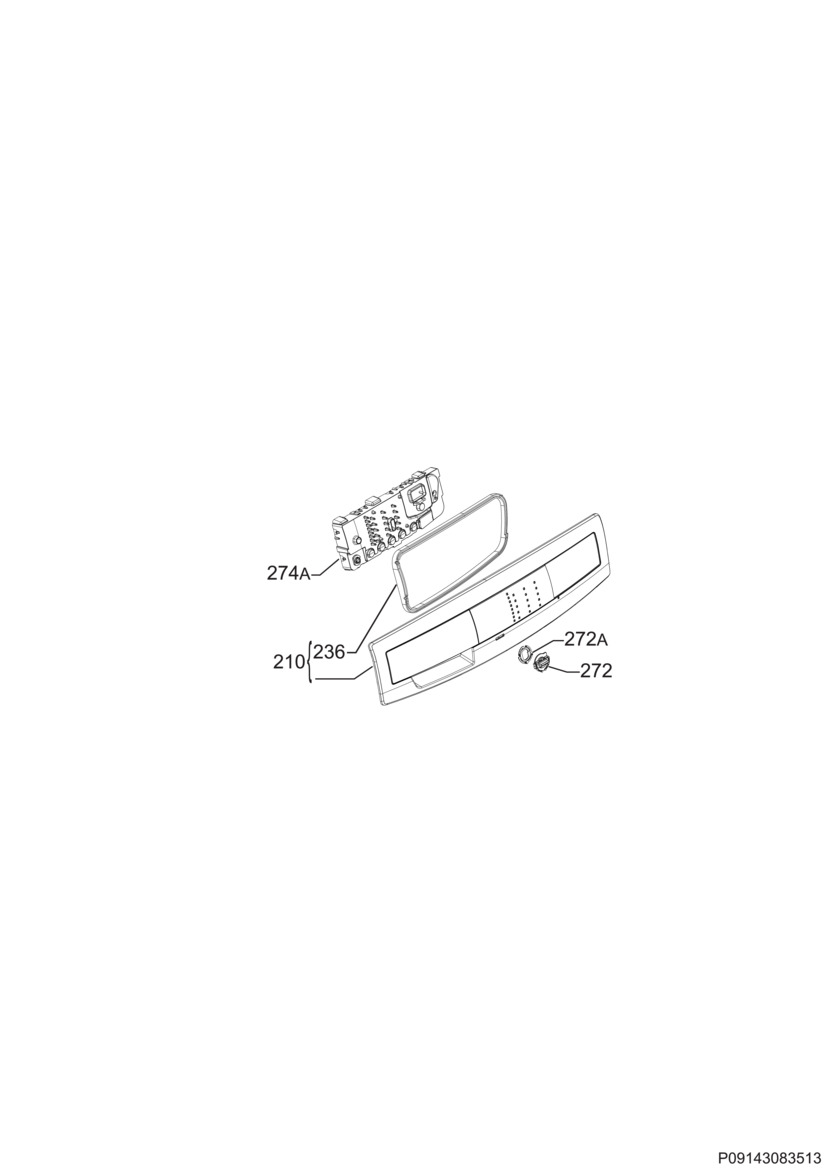

Button, black, circular, he - 140003050030 - p.272
Button, black, circular, he - 140003050030 - p.272, ...
Cabinet,back,white,hec54,p2 - 1926300003 - p.151
Cabinet,back,white,hec54,p2 - 1926300003 - p.151, ...
Cabling, solenoid valve, main - 1327691273 - p.999
Cabling, solenoid valve, main - 1327691273 - p.999, ...
Cluster,welded,assembly,p49,12 - 1926900505 - p.600
Cluster,welded,assembly,p49,12 - 1926900505 - p.600, ...
Control panel, handle - 140019564016 - p.210
Control panel, handle - 140019564016 - p.210, Ersatzteile ...
Counterweight, upper, 10.0kg - 140002731010 - p.621T
Counterweight, upper, 10.0kg - 140002731010 - p.621T, ...
Counterweight,front,red - 140002732018 - p.621F
Counterweight,front,red - 140002732018 - p.621F, ...
Cover,door lock,latch - 8077560012 - p.521A
Cover,door lock,latch - 8077560012 - p.521A, Ersatzteile ...
Cover,drain pump - 140010278012 - p.506A
Cover,drain pump - 140010278012 - p.506A, Ersatzteile ...
Detergent drawer,partition,fla - 1327309009 - p.851B
Detergent drawer,partition,fla - 1327309009 - p.851B, ...
Detergent drawer,pilot2 - 1327307052 - p.851
Detergent drawer,pilot2 - 1327307052 - p.851, Ersatzteile ...
Diffuser,luminous diode,suppor - 140003054016 - p.274A
Diffuser,luminous diode,suppor - 140003054016 - p.274A, ...
Distanzausgleich,befestigung,p - 1325142006 - p.840C
Distanzausgleich,befestigung,p - 1325142006 - p.840C, ...
Door frame, front - 140003617051 - p.361
Door frame, front - 140003617051 - p.361, Ersatzteile ...
Door frame, rear, white, 478.6mm - 8076436057 - p.360
Door frame, rear, white, 478.6mm - 8076436057 - p.360, ...
Door lock,latch - 8084553018 - p.521
Door lock,latch - 8084553018 - p.521, Ersatzteile ...
Door,diaphragm,pump body - 140006895019 - p.171
Door,diaphragm,pump body - 140006895019 - p.171, ...
Drain hose,2540mm - 140013554013 - p.831
Drain hose,2540mm - 140013554013 - p.831, Ersatzteile ...
Drain tub,assembly - 8090785018 - p.810
Drain tub,assembly - 8090785018 - p.810, Ersatzteile ...
Drum rib, set, 3pcs - 4055369005 - p.601
Drum rib, set, 3pcs - 4055369005 - p.601, Ersatzteile ...
Electronics configured - 973914911326010 - p.587
Electronics configured - 973914911326010 - p.587, ...
Electronics, control - 8079758416 - p.587A
Electronics, control - 8079758416 - p.587A, Ersatzteile ...
Endstück ablaufschlauch - 1242916003 - p.831B
Endstück ablaufschlauch - 1242916003 - p.831B, Ersatzteile ...
Filter Seal - 1320712001 - p.841A
Filter Seal - 1320712001 - p.841A, Ersatzteile ...
Filter,assembly,diaphragm,diam - 8091903016 - p.841
Filter,assembly,diaphragm,diam - 8091903016 - p.841, ...
Front panel,cabinet,white,wm,p - 8076999047 - p.150
Front panel,cabinet,white,wm,p - 8076999047 - p.150, ...
Gasket,control panel,front pan - 140003048018 - p.236
Gasket,control panel,front pan - 140003048018 - p.236, ...
Harness,analogic pressure swit - 140025535018 - p.999
Harness,analogic pressure swit - 140025535018 - p.999, ...
Harness,door safety interlock - 8085060013 - p.999
Harness,door safety interlock - 8085060013 - p.999, ...
Harness,heating element,main e - 8085126012 - p.999
Harness,heating element,main e - 8085126012 - p.999, ...
Harness,motor,main electronic - 1327354252 - p.999
Harness,motor,main electronic - 1327354252 - p.999, ...
Harness,pump,main electronic b - 1328259328 - p.999
Harness,pump,main electronic b - 1328259328 - p.999, ...
Harness,user interface board,m - 1327350532 - p.999
Harness,user interface board,m - 1327350532 - p.999, ...
Heating element,with,sensor,23 - 1327372007 - p.510
Heating element,with,sensor,23 - 1327372007 - p.510, ...
Hinge bushing - 8074938013 - p.367
Hinge bushing - 8074938013 - p.367, Ersatzteile ...
Hinge,porthole - 8075310014 - p.363
Hinge,porthole - 8075310014 - p.363, Ersatzteile ...
Kabeldurchführung,netzkabel - 1297196030 - p.523
Kabeldurchführung,netzkabel - 1297196030 - p.523, ...
Limiter, door, membrane, 150mm - 140007719010 - p.108D
Limiter, door, membrane, 150mm - 140007719010 - p.108D, ...
Luftkammerdichtung für waschmaschinen - 1081724013 - p.999
Luftkammerdichtung für waschmaschinen - 1081724013 - p.999, ...
Motor,commutator,230v,50hz,f - 140001072010 - p.504
Motor,commutator,230v,50hz,f - 140001072010 - p.504, ...
Mutter für waschmaschinenfüße - 1108771005 - p.130B
Mutter für waschmaschinenfüße - 1108771005 - p.130B, ...
Not configured electronic,ewx1 - 8078222083 - p.587
Not configured electronic,ewx1 - 8078222083 - p.587, ...
Puffer,oben,pumpenkörper - 1325014015 - p.840B
Puffer,oben,pumpenkörper - 1325014015 - p.840B, Ersatzteile ...
